Image Picker

Image Picker Image Picker

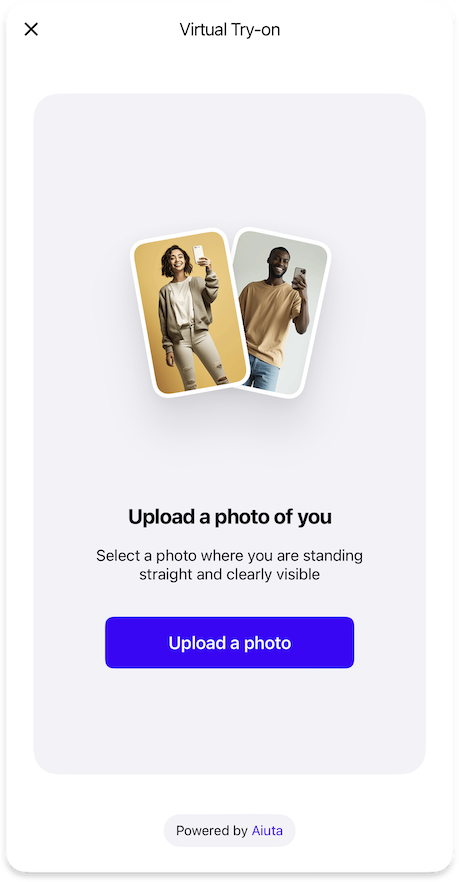

The Image Picker feature represents the main page and allows users to select images for virtual try-on from various sources.

When to Use

  • Let users select photos from their device
  • Allow users to take new photos with the camera
  • Provide predefined models images for try-on
  • Enable users to reuse and manage previous images

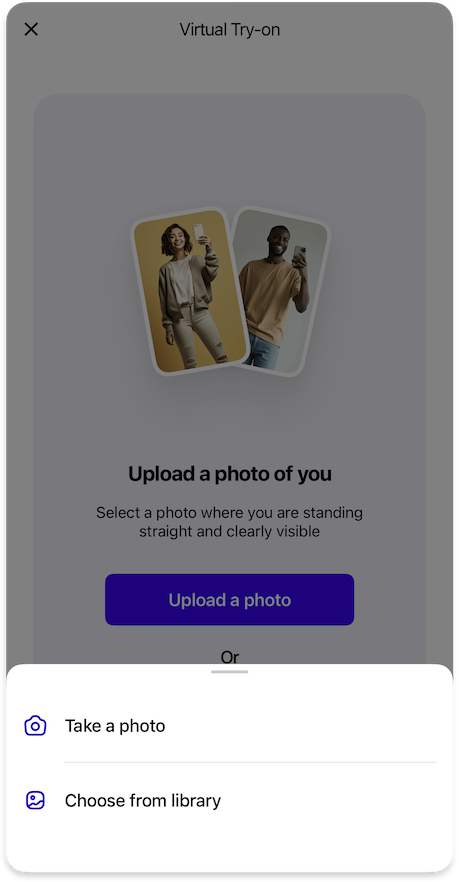

Sources

Camera

Camera

Allows users to take new photos using their device's camera.
Uses the platform's standard camera tools for applications.

Customization

Customization

Icons
  • camera24 - Icon for the camera button in the bottom sheet list
Text Elements
  • cameraButtonTakePhoto - Label for the button used to take a photo
  • cameraPermissionTitle - Title for the camera permission alert
  • cameraPermissionDescription - Description for the camera permission alert
  • cameraPermissionButtonOpenSettings - Label for the button that opens app settings

Photo library

Gallery

Enables users to select photos from their device's photo library.
Uses the platform's standard photo picker.

Customization

Customization

Icons
  • gallery24 - Icon for the gallery button in the bottom sheet list
Text Elements
  • galleryButtonSelectPhoto - Label for the button used to select a photo

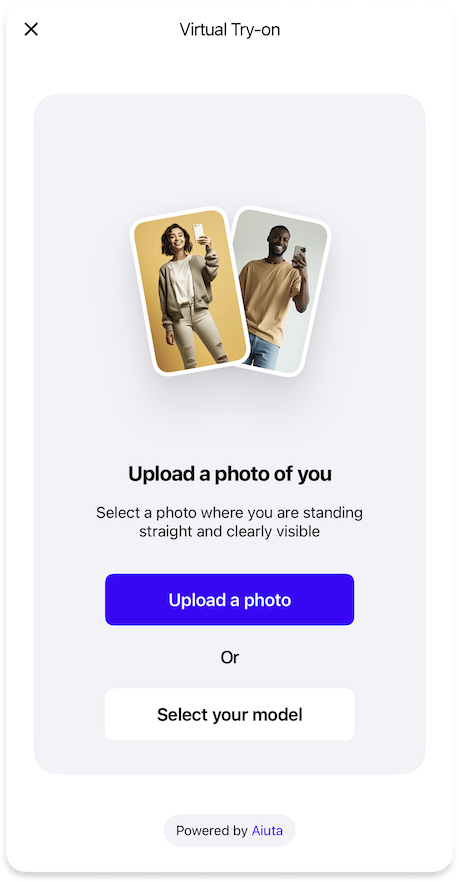

Predefined Models

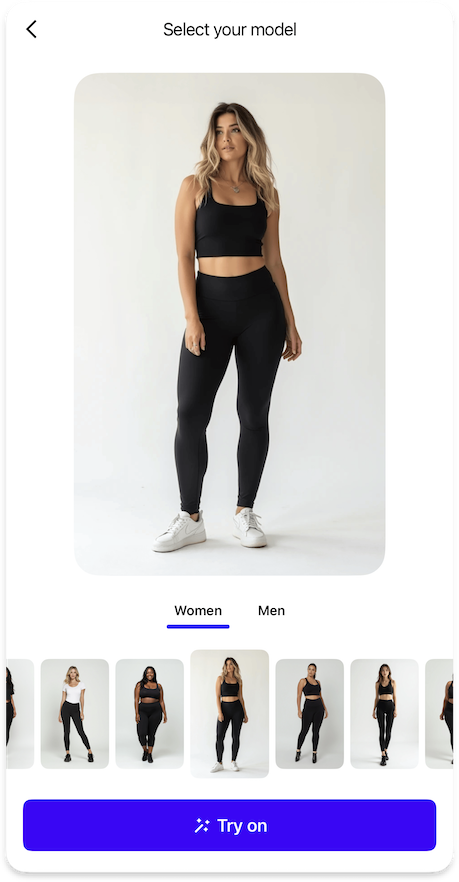

Image Picker Predefined Models

Provides a selection of predefined models images for virtual try-on. Models are divided into categories, each containing a set of model images with different body shapes. This allows users to select models that best match their preferences and needs, offering a personalized virtual try-on experience, while allowing them not to use their own photos.

Models data

The SDK gets categories and the corresponding model lists from the Aiuta backend. Apps don't need to provide any data for this.

By default, there two categories: woman and man in that order.
If necessary, categories can be fully customized in agreement with Aiuta.

Predefined models, History and User data

If you use your own history data provider and manage image files when they are added to or deleted from the user's history, please note:

  • The link to the image used with the model can be saved in the user's history
  • The file with the model image should not be moved to the user's storage, it is a shared file and does not belong to a specific user
  • When deleting from the user's history, the link to the image must be deleted, but the file with the model image itself cannot be deleted
Customization

Customization

Icons
  • selectModels24 - Icon for the predefined models button
Text Elements
  • predefinedModelsTitle - Title of the predefined models page and button
  • predefinedModelsOr - Label displayed before the predefined models button
  • predefinedModelsEmptyListError - Error message for empty model list
  • predefinedModelsCategories - Mapping of category IDs to titles (e.g., "man", "woman")

Image Picker

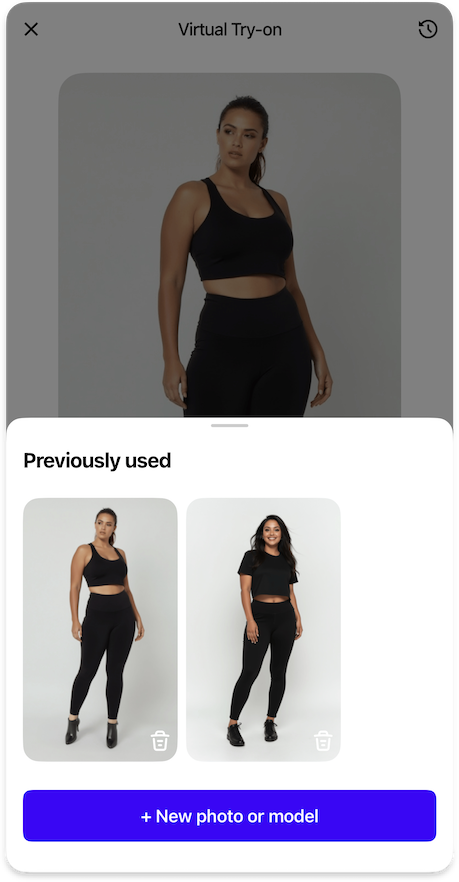

Uploads History

Uploads History Image Picker

Allows users to access and reuse their previously used images.

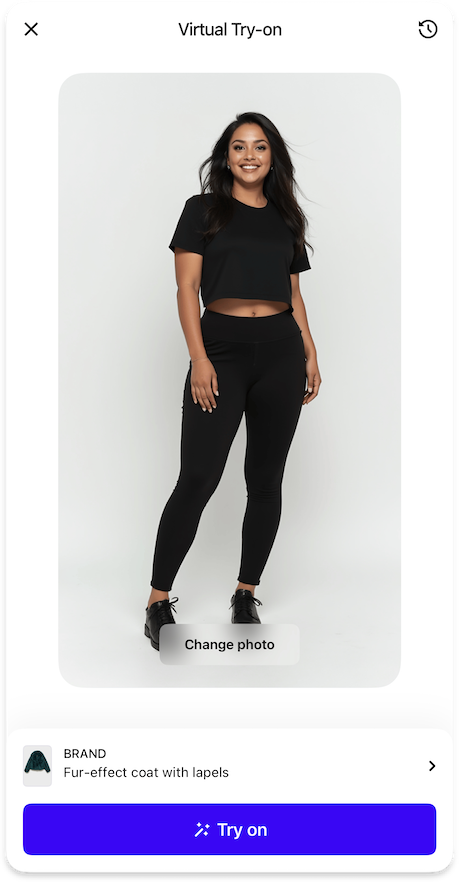

The last image used will be preselected in the image picker for subsequent try-ons.

History Data

Each image in the history is defined by the following properties:

  • id - A unique identifier for the image
  • url - The address of an image resource
  • type - The type of the image.
Image Type

Is this context of images used as input it is:

Image uploaded by the user (taken from the camera or gallery). This image belongs to the user. When the user removes the image from the history, it should be deleted from the storage as well.

Image of the model, provided by the Aiuta. This image could be linked to the user history, but it is not owned by the user, and should not be deleted, only unlinked from the user's history in case of removing.

Data Management

By default, the SDK uses platforms' local storage to store the history. This is the simplest approach and requires no additional configuration.

Anonymous data

Neither the SDK nor the Aiuta API have any information about your users; all uploaded images are completely anonymous and are not linked to any user. Data in the history is stored locally on the device and may be lost when the app is reinstalled.

If you need to link images to a user profile, use Data Provider instead.

You can implement your own custom history data provider that:

  • Provides the uploadedImages list of images previously used by the user
  • Reacts to the addUploadedImages callback to store new images
  • Reacts to the deleteUploadedImages callback to remove images by the user choise
  • Reacts to the selectUploadedImage callback to reorder images when reused

This allows you to

  • Integrate with your existing user management system
  • Sync the uploads history across devices
  • Implement custom business logic for history management
  • Control how images are stored and accessed
Customization

Customization

Text Elements
  • uploadsHistoryButtonNewPhoto - Text for the new photo button
  • uploadsHistoryTitle - Title for the uploads history screen
  • uploadsHistoryButtonChangePhoto - Text for the change photo button
Styles
  • changePhotoButtonStyle - Style for the "Change Photo" button:
    • blurred - Default blurred style with optional outline
    • primary - Solid button with primary background color

Analytics

The following analytics events are tracked during image selection:

Type Event Page Id Description
page imagePicker Image picker page opened
picker cameraOpened imagePicker Camera interface opened
picker newPhotoTaken imagePicker New photo taken with camera
picker photoGalleryOpened imagePicker Photo gallery opened
picker galleryPhotoSelected imagePicker Photo selected from gallery
picker uploadsHistoryOpened imagePicker Uploads history opened
picker uploadedPhotoSelected imagePicker Previously used photo selected
picker uploadedPhotoDeleted imagePicker Previously used photo deleted
picker predefinedModelsOpened imagePicker Predefined models list opened
picker predefinedModelSelected imagePicker Predefined model selected
exit imagePicker SDK was closed on the image picker page

How to implement

  • Android
  • iOS
  • Flutter
